Judge Dredd Kit $150 (Plus Shipping)
Bally's Judge Dredd Pinball machine was originally designed to have three locked balls spinning in the deadworld simultaneously and for the crane to pick up each ball individually, releasing multiball. However operators feared the possibility of malfunction would cause the balls to be permanently stuck in the deadworld and the idea was cancelled. This resulted in the game losing it's greatest feature!
Before ordering this kit you must identify and remove your opto PCB and send it to me (Shipping to the UK approx. $10)

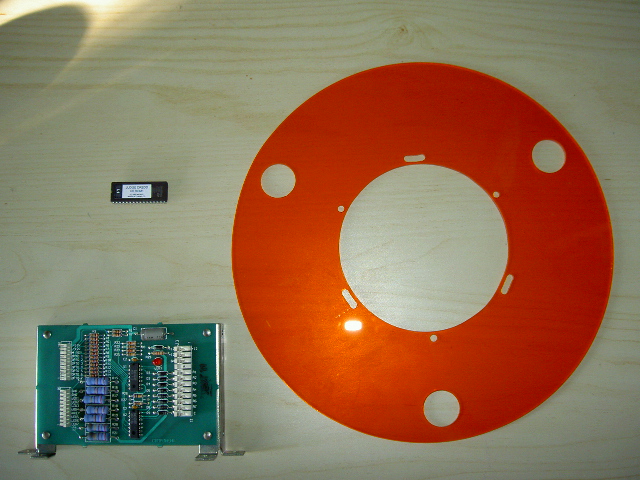

The kit includes all parts required to restore your Judge Dredd to its intended design.
1) New locking ring with holes instead of slots

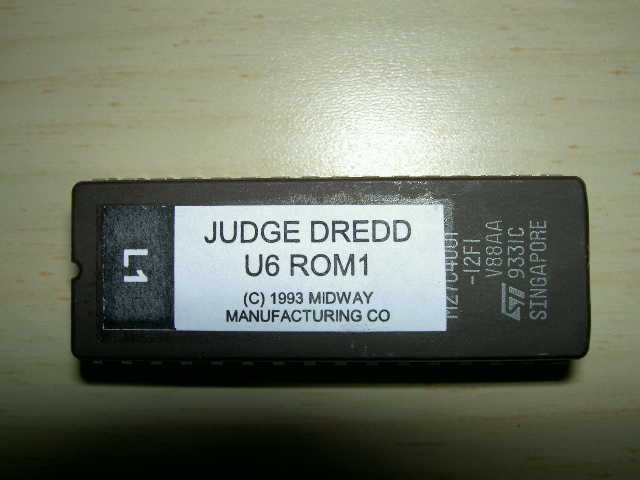

2) Rom chip L_1

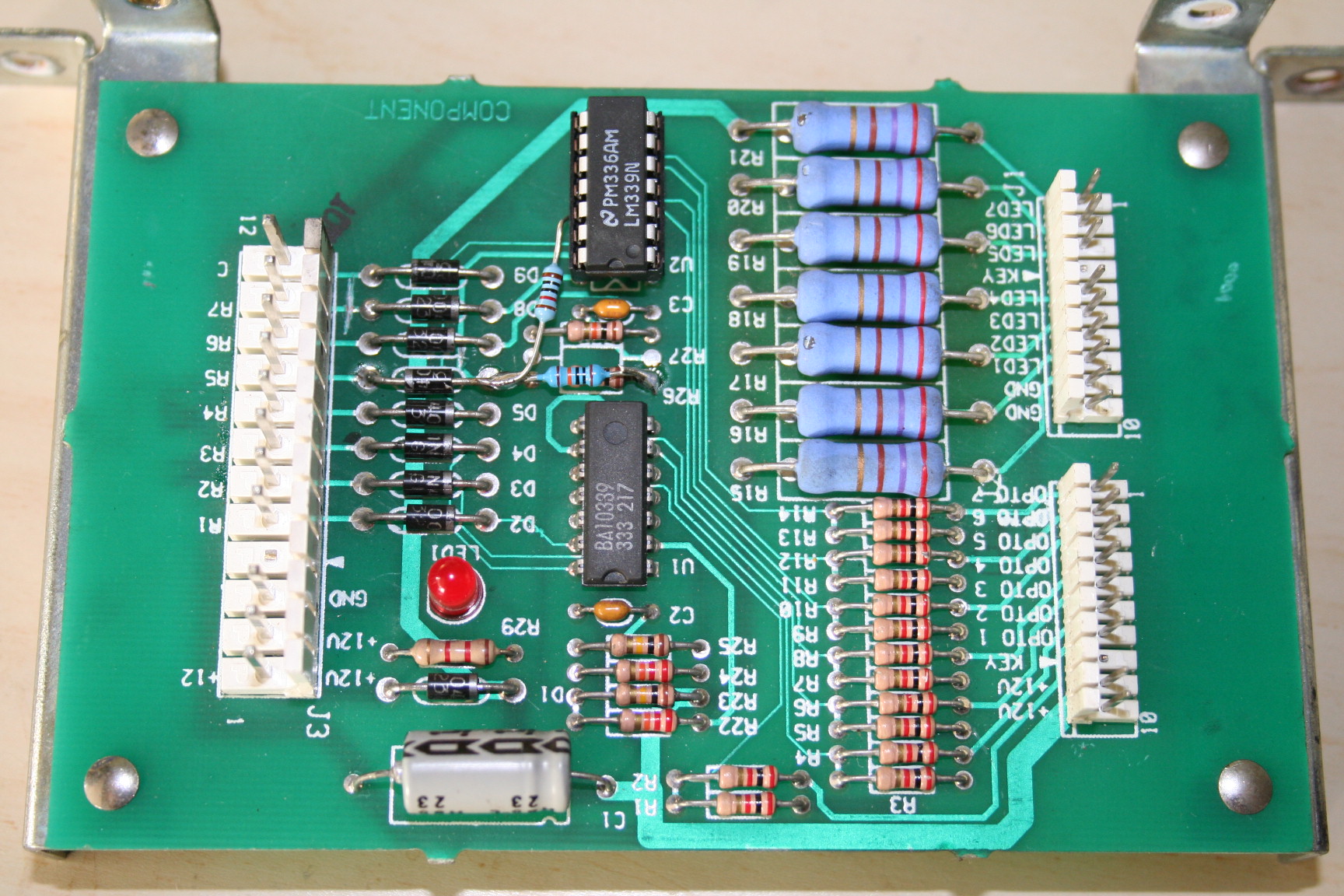

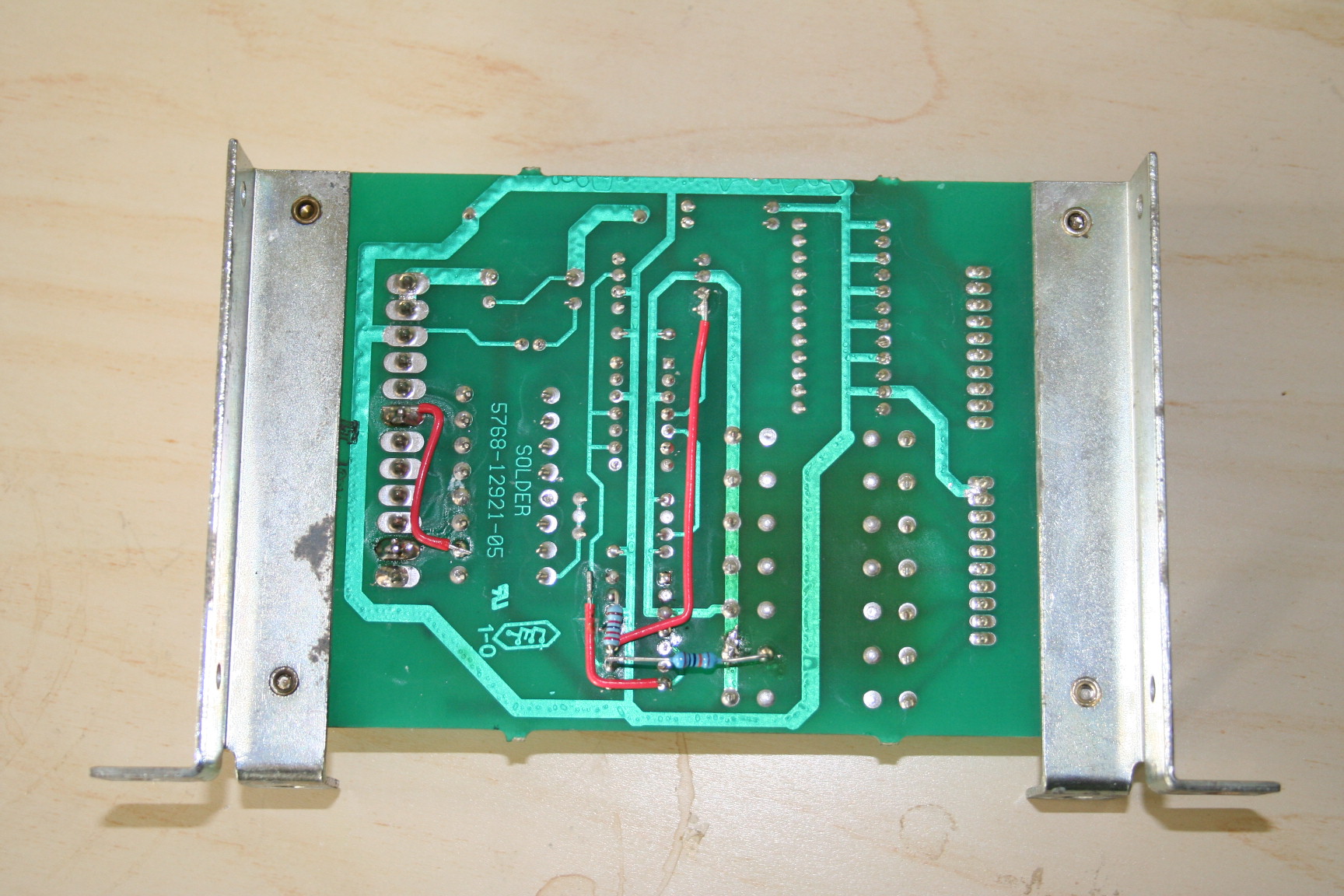

3) Modified exchange opto board
4) Fitting instructions
There are two opto boards located about mid-point on the underside of the playfield.
You need to remove the right hand side one.
Please send your board to:
Adam Gould
43, Barnfield Wood Road,
Beckenham
Kent
BR3 6ST
UK
I prefer payment by PayPal to adamgould@ntlworld.com
Locking Ring, Schematics, Rom_1 and fitting instructions $85
As above but with exchange opto board $150
As above but with brand new modified opto board $225 - Awaiting stock
N.B. Shipping not included
Parts required for DIY modders are:
100k resistor 2 of
22k resistor 1 of
10k resistor 1 of
14 pin ic socket for the LM339 chip
